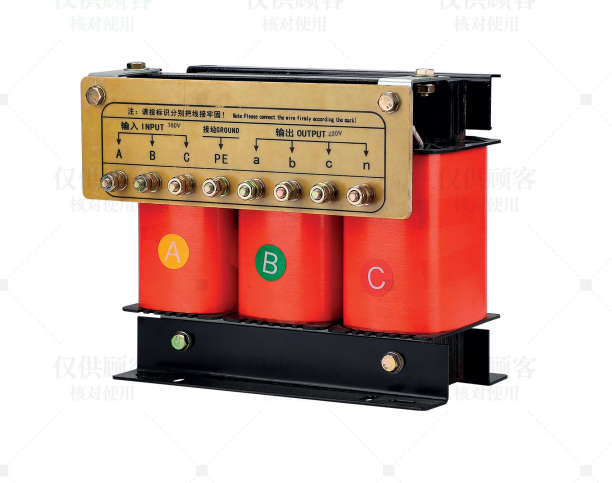

Silicon Steel Sheet Electrical Isolation Transformer Low Noise For Power Distribution

Isolation Transformer

technical parameters

Capacity range:  single-phase: 0.5kVA~50kVA; Three-phase: 1kVA~2000kVA
Efficiency: ≥ 97%
Insulation class: F/H
Temperature rise: ≤ 100K
Noise level: ≤ 55dB
Frequency: 50/60Hz

Product Features

• Using high-quality silicon steel sheets, with low no-load loss, low noise, and low temperature rise.
• Using high-quality polyester enameled wire or film-insulated wire, with high temperature resistance and excellent insulation performance.
•  Interlayer insulation made of DuPont Nomex insulating paper featuring high temperature resistance, high voltage endurance and flame      retardancy.

 Process Characteristics

The transformer adopts the integral VPI vacuum pressure impregnation process, which uses high vacuum degassing, pressure infiltration, and integral solidification to make the winding insulation dense and bubble free, with excellent heat dissipation and high mechanical strength. It has the advantages of moisture and dust prevention, short circuit resistance, low noise, long life, safety and environmental protection.

Scope of application

Power distribution for control systems such as precision machinery, precision instruments, electronic instruments, medical equipment, etc.
