Amorphous Alloy Transformer 10kV Oil Immersed Distribution Transformer Eco Friendly

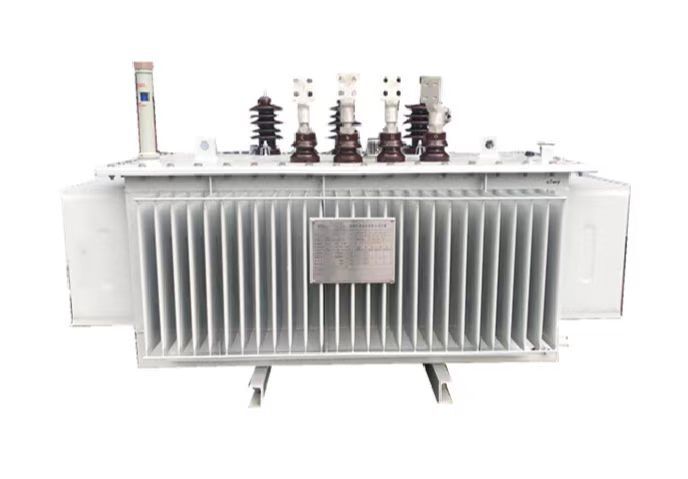

10kV Oil-immersed amorphous alloy distribution transformer

Description
● amorphous alloy iron core has low coercivity, ultra-low loss, low excitation current and good temperature stability. It is a green and environmentally friendly high-efficiency energy-saving transformer.
● the iron core adopts three-phase four frame five column structure.
● This product is suitable for use in industrial and mining enterprises, residential areas, and urban and rural power grids.
● transformer oil tank adopts sealed structure, which is reliable in operation and maintenance free.
● the no-load loss of 15 type three-phase amorphous alloy transformer is about 50% lower than that of S13 type silicon steel distribution transformer, which is especially suitable for rural power grid and places with low load rate.

Product range:
S (b) h15-m- (30-2500)/10kv series three-phase amorphous alloy transformer
S (b) h21-m- (30-2500)/10kv series three-phase amorphous alloy transformer
S (b) h25-m- (30-2500)/10kv series three-phase amorphous alloy transformer, etc
