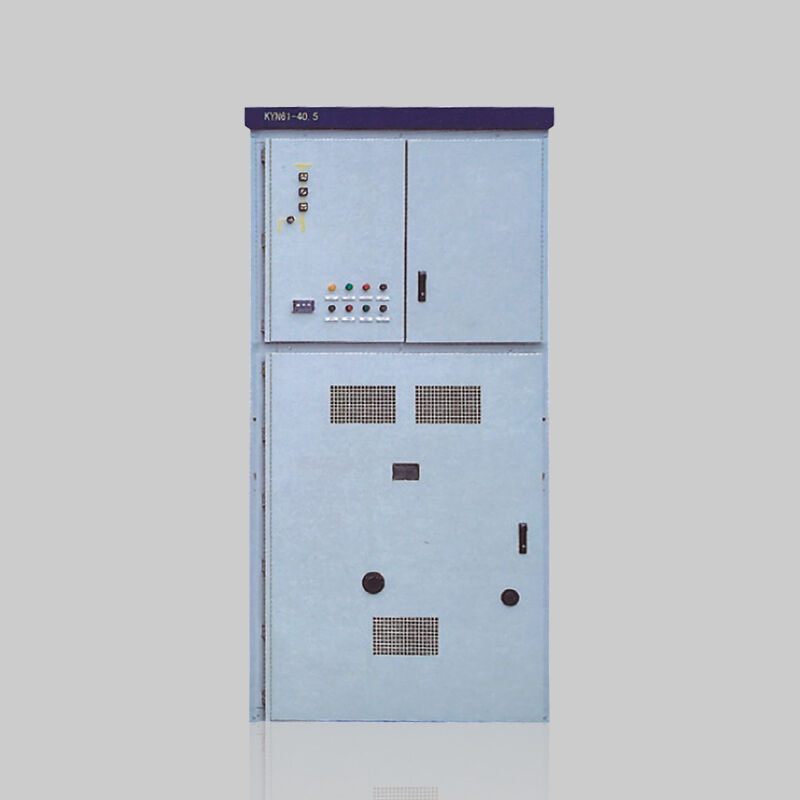

KYN61-40.5

Outdoor AC Armoured Movable Type Metal Sealed Switchgear

KYN61-40.5 is an advanced outdoor AC armoured movable type metal sealed switchgear designed for reliable power distribution and control in demanding environments. This robust solution offers superior protection and operational efficiency, making it ideal for a wide range of industrial and utility applications.

• Enhanced Safety & Protection
• High Operational Reliability
• Movable & Flexible Installation
• Outdoor Rated & Weatherproof

Key Applications: Power generation, transmission substations, industrial facilities, commercial buildings, and outdoor power distribution networks.

Brief Introduction
KYN61 -40.5 Armoured movable AC metal enclosed switchgear (hereinafter referred to as switch cabinet) is applicable to 3-phase AC 50Hz and 40.5kV single bus and single-bus staged power system. It is mainly used as the reception and distribution of electrical energy transformation and distribution in the power transformation and distribution power plant, substation and industrial and mining establishment as well as high-rise. It controls and protects as well as monitors the circuit. It meets the requirement of IEC60298,  GB3906 and DL404 standards and so on. It has the perfect "5 protections" function.

Service Environmental Condition
Altitude: No higher than 2000m;
Ambient temperature: the upper limit is +40°C and the lower limit is -15°C;
Relative humidity: The daily average value is not more than 95% and the monthly mean value is not more than 90%;
Earthquake intensity: Not more than 8 degrees;
The location without severe dirtiness such as fire explosion hazard and strenuous vibration as well as chemical corrosion and so on.
